Classic 5-hole Round Metal Ceiling Canopy Kit

New product



- +

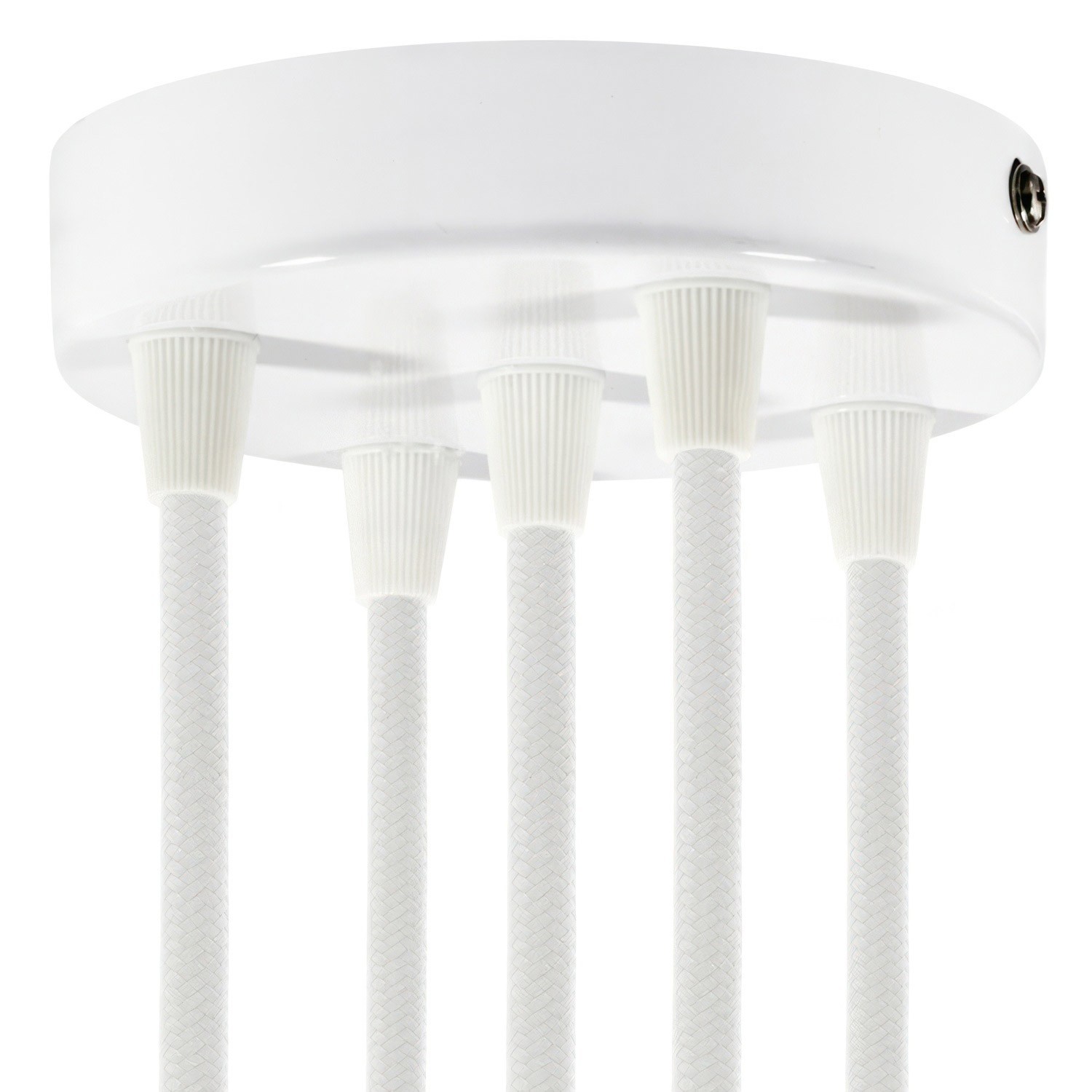

Our classic ceiling canopies. These 5-hole canopies are beautiful and easy to use while providing a sleek and stylish look. They can be used to make your own mulit-hole pendant light, hanging swag chandelier or to replace an existing multi-pendant light ceiling canopy.

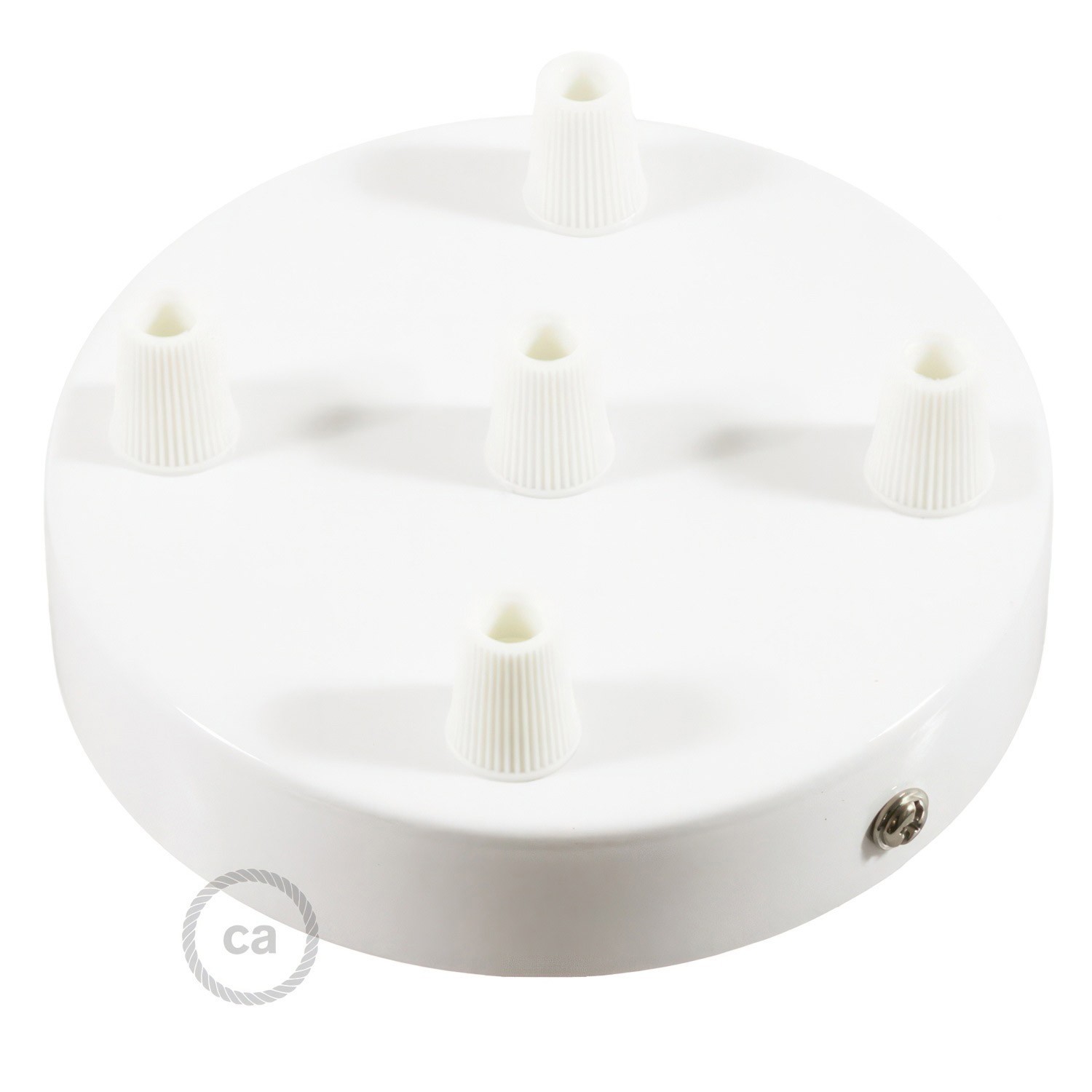

Just choose the color and style of the 5-hole ceiling canopy that you want and then select the type of cable strain relief that you'd like us to include with your canopy. The basic cable strain relief is a plastic Conical haped design. For a more refined look go with the Cylindrical cable strain relief option. All of the cylindrical cable strain reliefs are metal, except for the one that matches the gloss white canopy, which is plastic. (To better match the color of the gloss white.)

These 5-hole ceiling canopies are 4.7 inches in diameter. Large enough to cover a standard junction box. They have a height of 1 inch, which allows plenty of room for wiring if you choose to mount these to a wall or ceiling without using a j-box. The three holes each have a diameter of 3/8 inch.

All of our ceiling canopies are designed to work with our round and twisted pendant light cloth covered wire color cord. So mix and match your favorite color cable with the ceiling canopy of your choice. Get creative with our lamp parts.

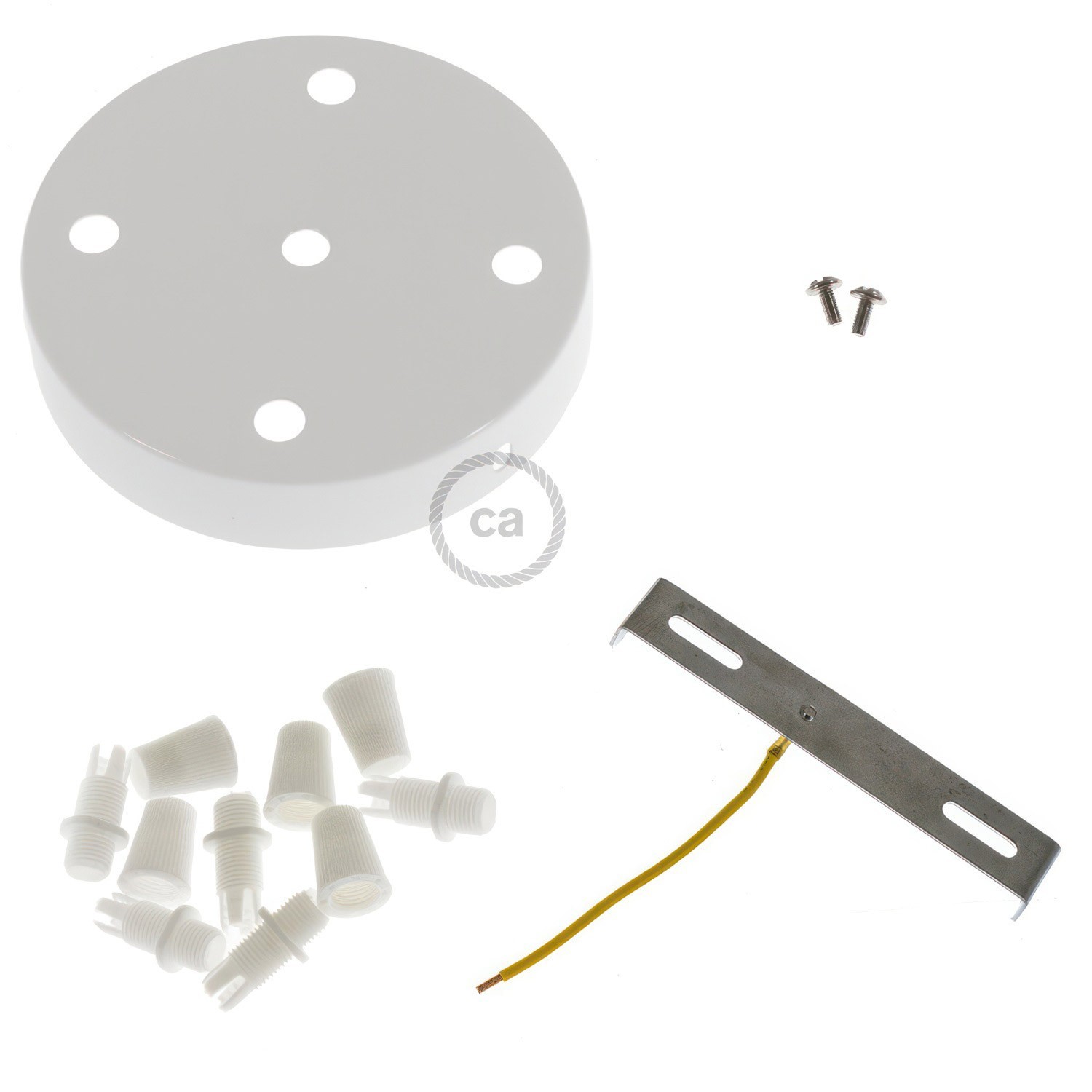

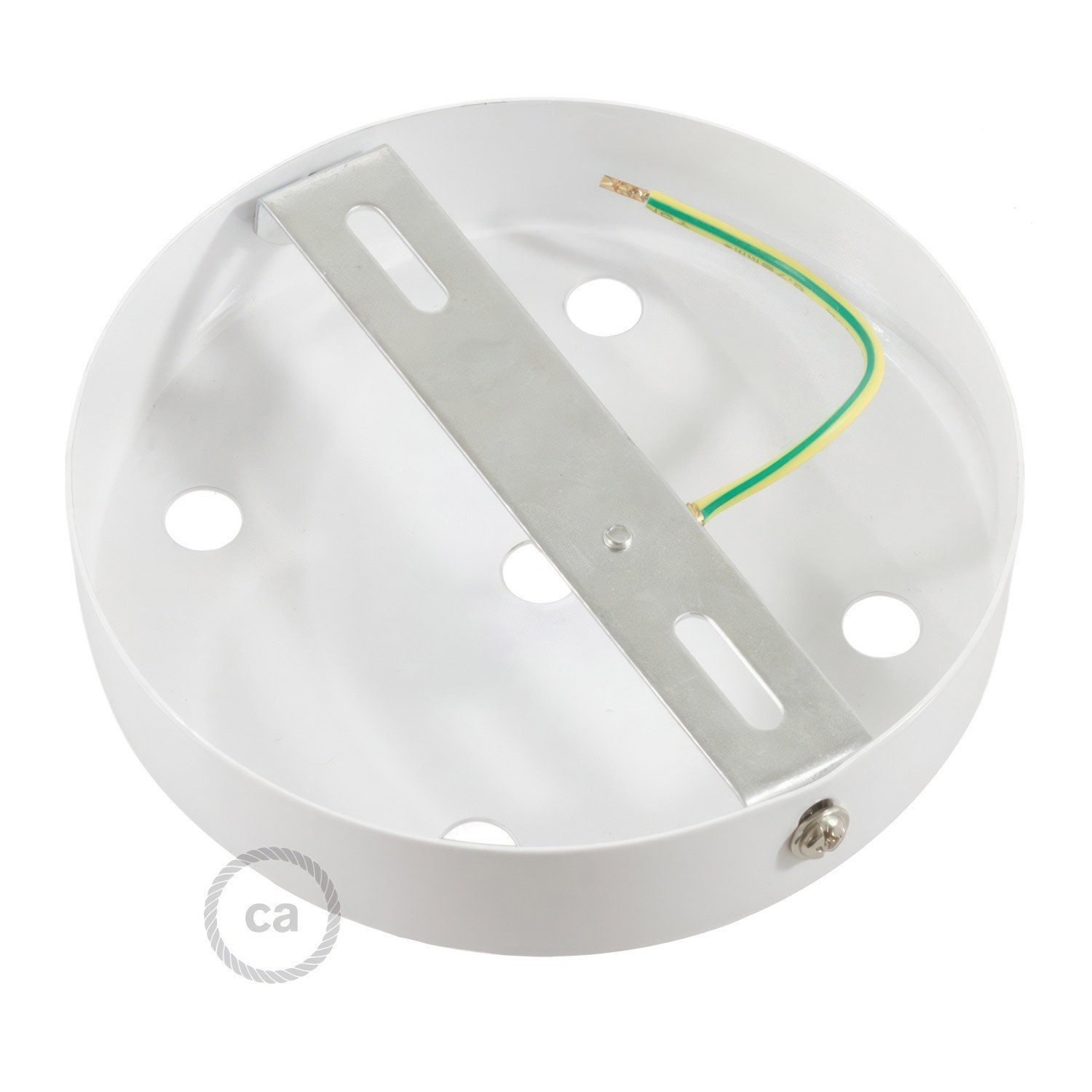

What's in the box? This 5-hole ceiling canopy comes with: the canopy; a crossbar for attaching the ceiling canopy to the junction box, wall or ceiling; two screws for attaching to a wall; two screws for attaching the mounting plate to the sides of the ceiling canopy; and your choice of style strain reliefs. (If you choose the cylindrical strain relief option it will include the cable strain relief, a metal tube for connecting to the strain relief, a lock washer and a nut.)

Be sure to check out all of lamp parts here at Creative Cables. You'll find an extensive selection of everything from cloth covered wire, unique XL LED light bulbs, light bulb sockets and more.

More details

More info

Technical specifications 5-hole Classic Round Metal Ceiling Canopy Kit:
Canopy diameter: 4.7 inches (120 mm)
Hole diameter: 3/8 of an inch (10 mm)
Material: metal

Technical specifications for the Cylindrical cable strain relief clamp:
Colored Cap size:
- diameter: 1/2 inch (13 mm)
- height: 2/3 inch (17 mm)
Cap Material:
- Gloss White Canopy uses a matching Plastic Cylindrical cable strain relief.
- All other ceiling canopy colors use a matching Metal Cylindrical cable strain relief.
The Cylindrical cable strain relief is attached to a threaded tube with the following specs:
- diameter: 3/8 inch (10mm)
- height: .59 inches (15 mm).
- material: metal

Technical specifications for the Plastic Conical cable strain relief clamp:
- diameter: .58 inches (14.8 mm)
- height: 1.70 inches (43mm)
- material: thermoplastic.

Data sheet
Technical spec sheet
We ship all packages via USPS or FedEx. Orders of in-stock items are generally shipped within 48/72 hours.
If the item is not currently available in our US warehouse, delivery time will be around 15 working days.
See more details here: Shipping information
