Tired of boring old metal conduit? With our Creative-Tube fabric conduit you can add a whole new dimension of color to your lighting projects!
Our Creative-Tubes have small metal wires embedded in the tube that run the tubes entire length. This allows our Creative-Tube to be able to assume and maintain any shape you give it. The only limit to the uses & applications for our Creative-Tube will be your imagination!

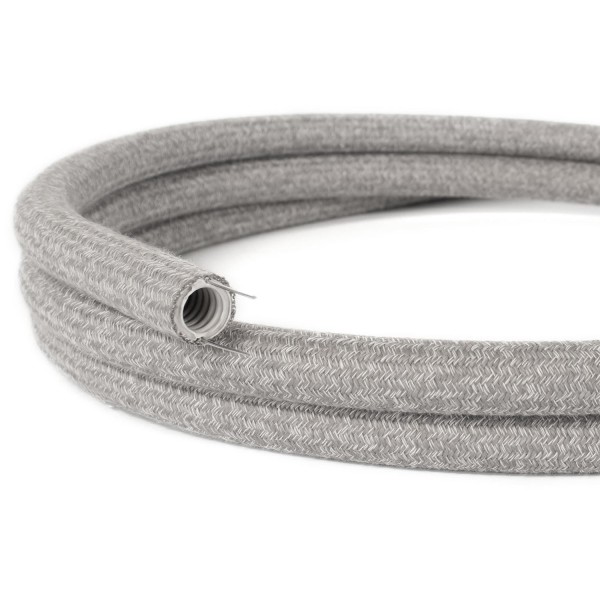

With the 20 mm size Grey Natural Linen fabric covered tube you can bring shapes and colors to your lighting ideas.

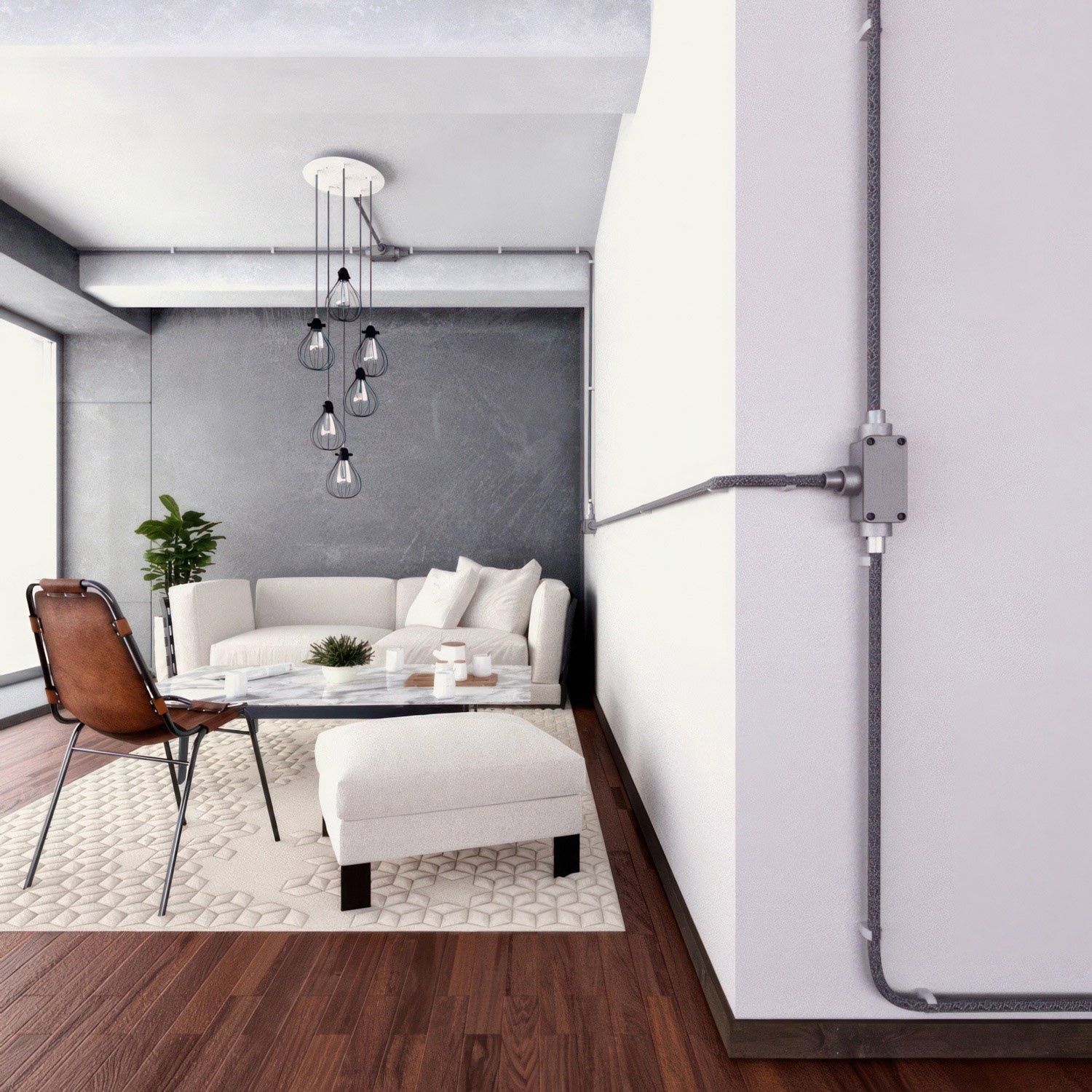

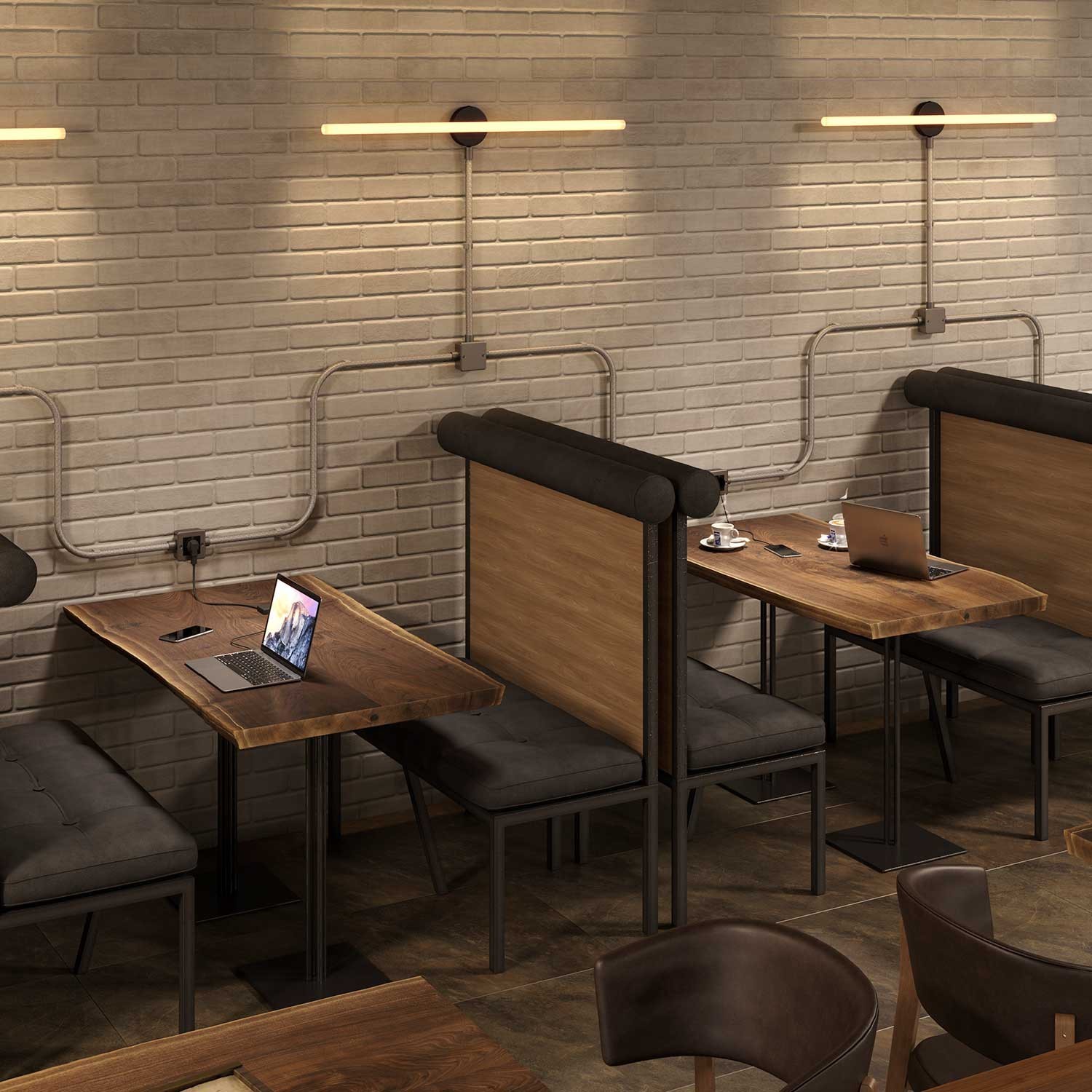

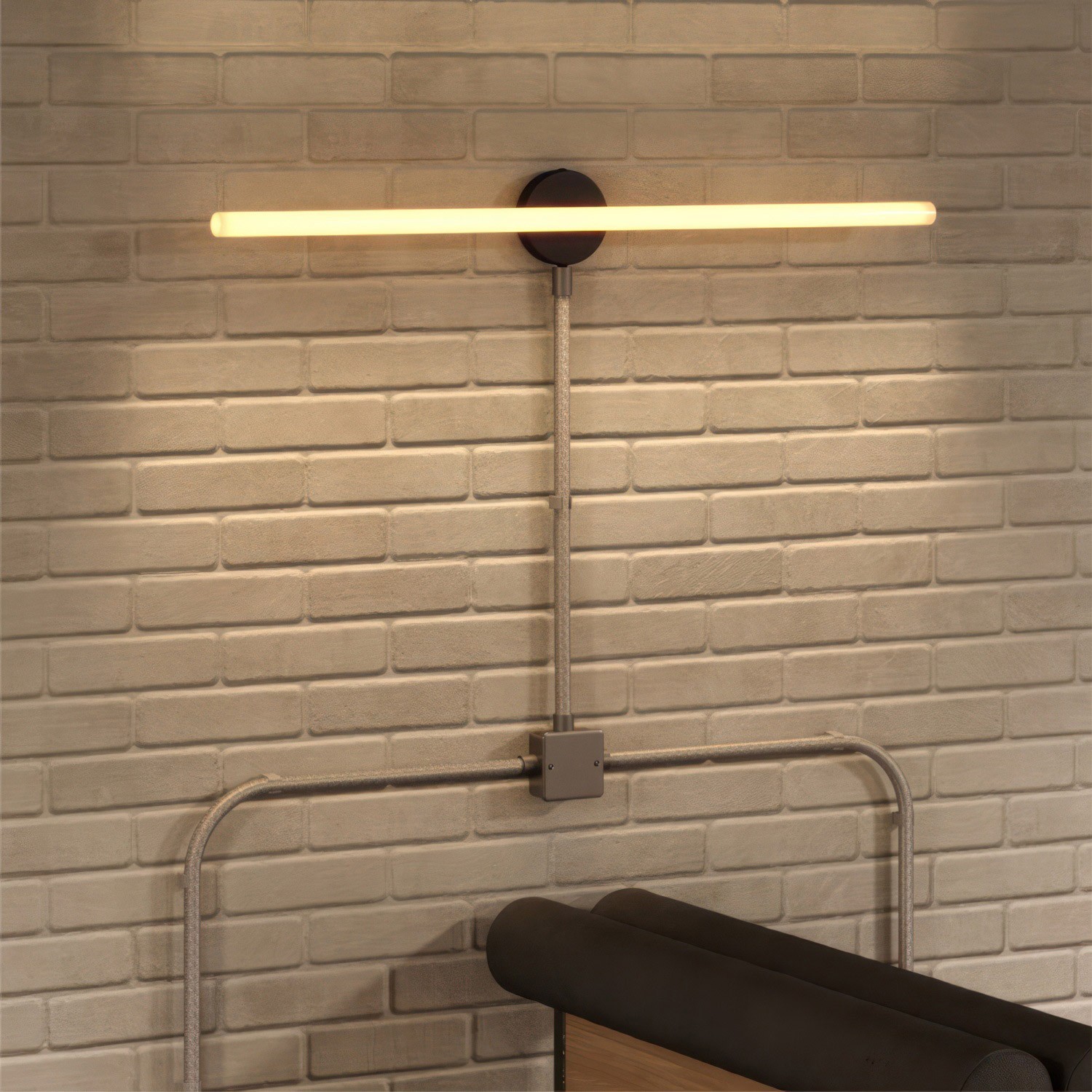

You can combine our 20mm Creative-Tubes to connect our tube to any standard junction box and connect to a switch to make a customized color conduit lighting solution that runs on the outside of walls. You'll no longer be limited to only in where you want to place a light with a wall switch. And no more worries about drilling holes to run wires inside of yuour walls! Just bend Creative Tube to the desired shape and let it enlighten your home!
You can use Creative-Tubes for exterior walls. Their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321 and it is IMQ certified.
Creative-Tube is sold per foot, multiple orders will be delivered in one piece up to a maximum of 164 feet.
Can't find the Creative-Tube color you want? Contact us: we can make it for you!
Classification No: 3321
Crushing resistance: >750N on 5 cm at 20°C
Schock resistance: (-15°C) after applying 2 kg mass hammer
Operating temperature: -5°C to +60°C
Resistance to flame propagation: self-estinguishing VO
Dielectric strength: <2000v at="" 50hz="" br=""> Insulation resistance: >100 mega ohm
Diameter: 20 mm
Color: Grey Natural Linen RN02

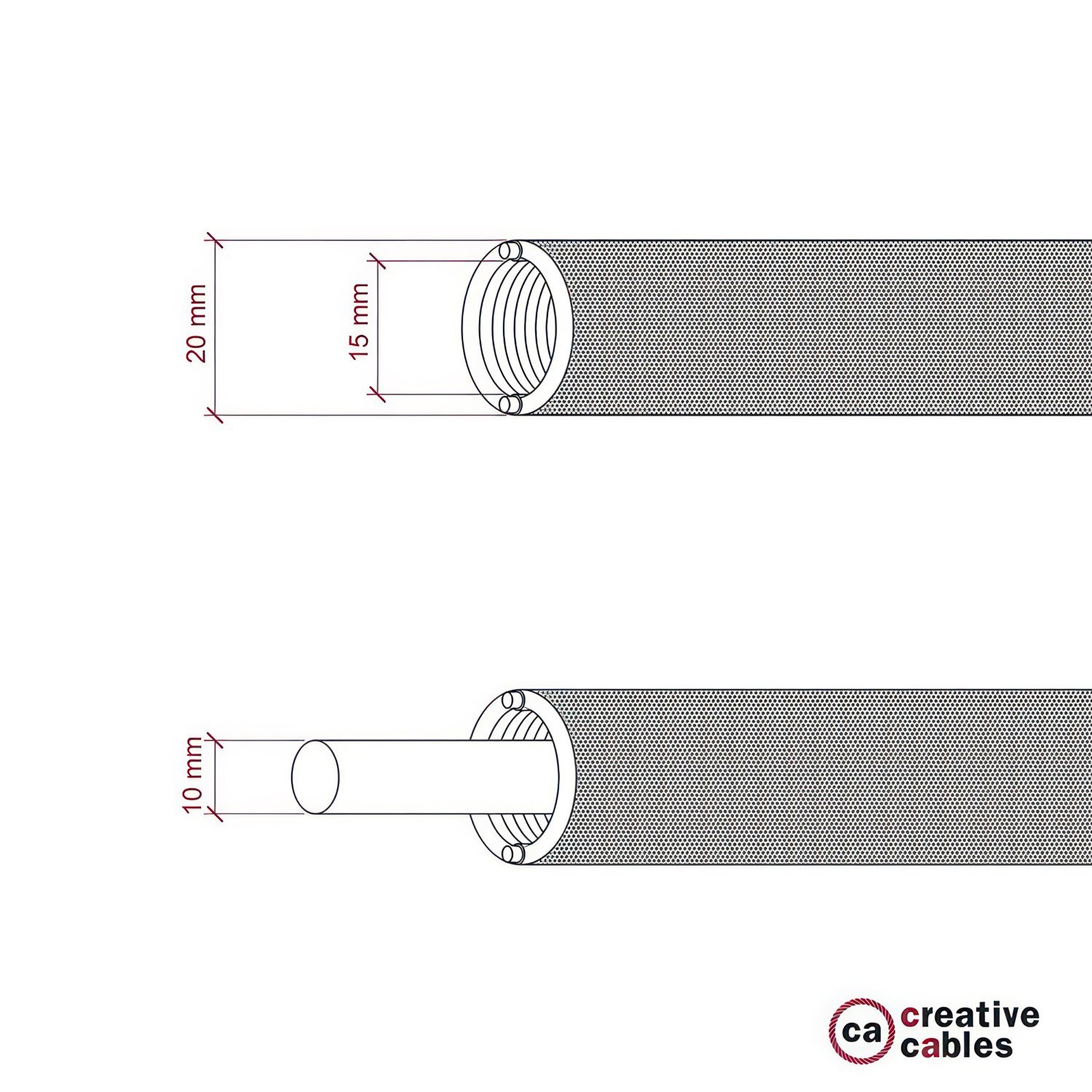

According to the CEI 64-8 standard, to guarantee the cable removal, the maximum useful cross-section of cables inside the Creative-Tube can be 10 mm for a Tube up to 10 metres long. Up to 20 metres, the maximum thickness will be 9 mm.
Due to the shape of Creative-Tube, once positioned it is necessary to cut the pieces of metal filament that protrude from the limit of the pipe, before you can install the accessories or connect it to the junction box.
