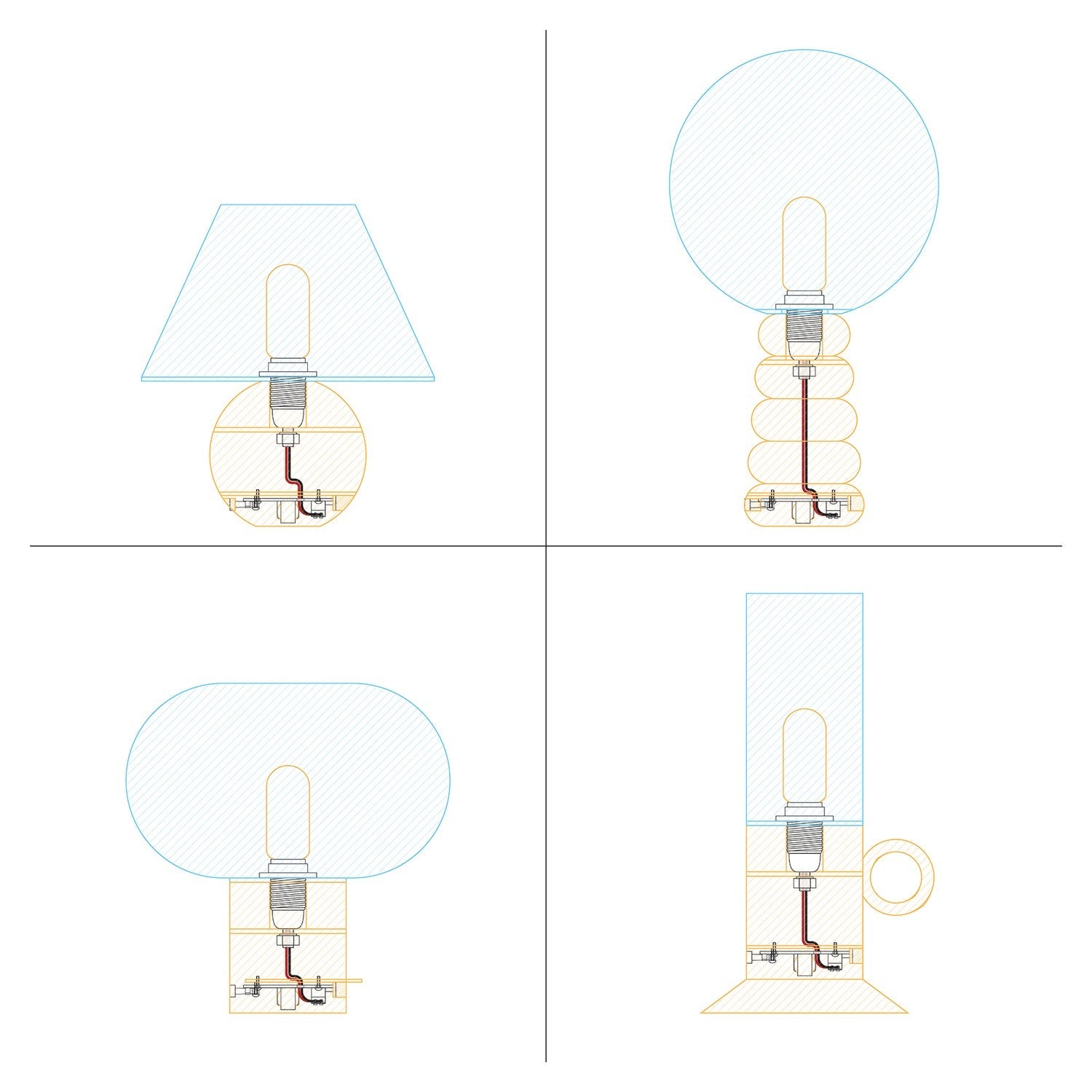

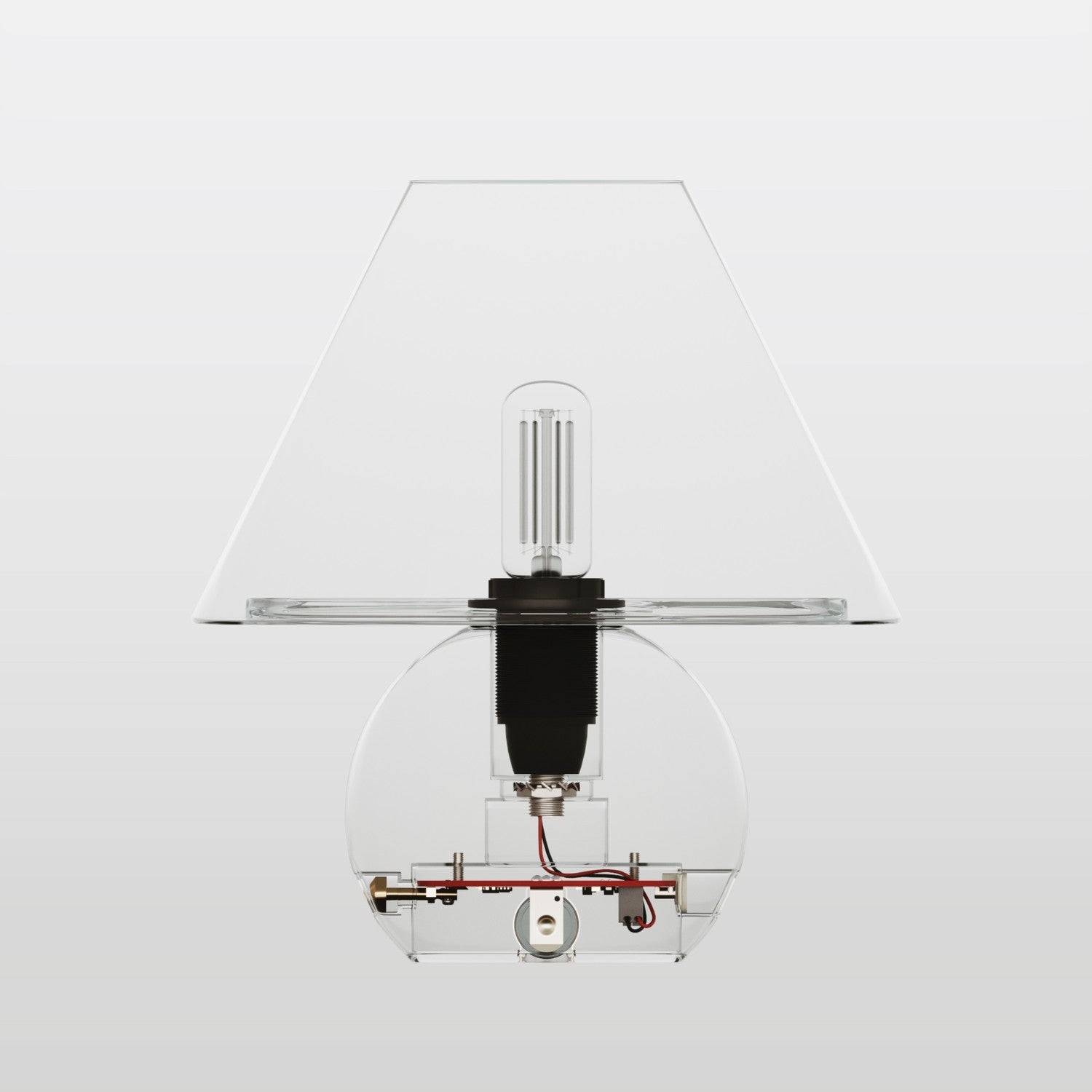

5V USB C rechargeable battery electronic kit developed for designing custom portable lamps. A technical solution aimed at makers and designers who create bespoke lamps, prototypes or custom structures, including with 3D printing.

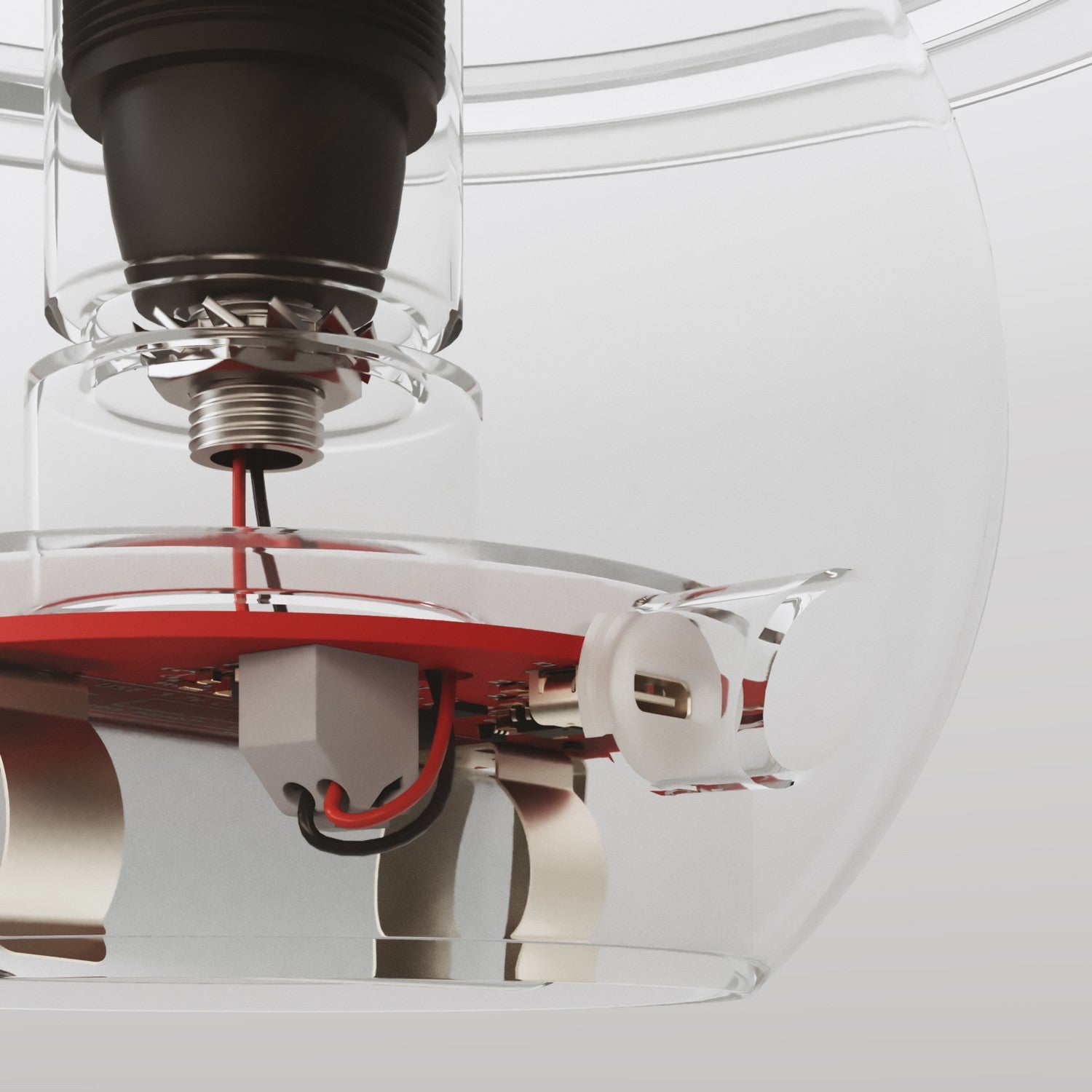

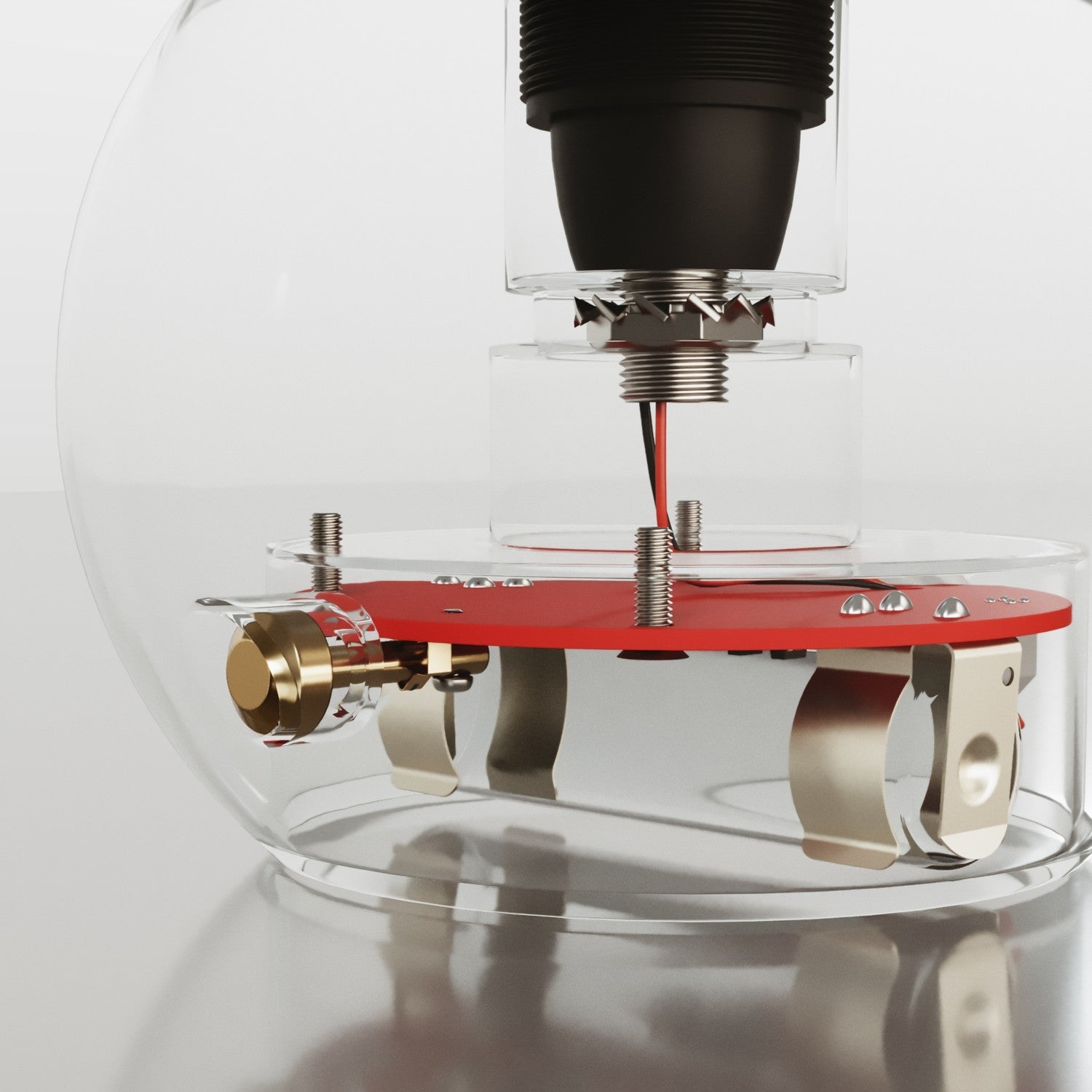

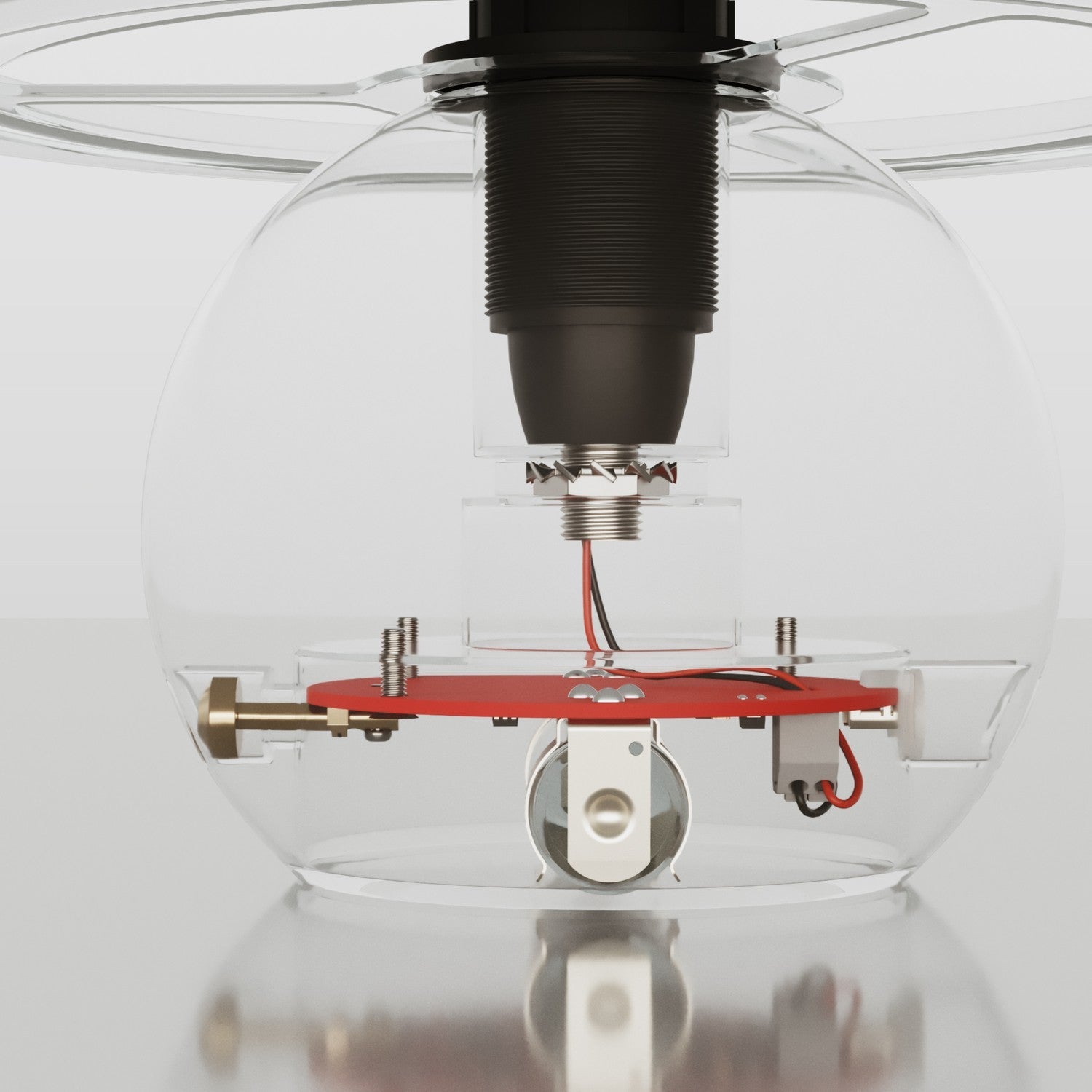

The system uses a circular electronic board with 5V USB C input and 5V output dedicated to powering the light source. The connection to the Socket via low-voltage cables allows the electronic component to be separated from the Light bulb and gives full freedom in arranging the components.
The kit includes a black threaded E14 Socket in thermoplastic, equipped with a ring nut for mounting a compatible Lampshade.
Brightness adjustment is managed via a push button with integrated dimmer, with three intensity levels plus OFF. The system is compatible with 5V E14 Light bulbs and is suitable for creating battery-powered lamps designed to be disassembled and maintained over time.
Assembly requires no soldering or special equipment. All connections are designed for quick installation with a standard screwdriver, making them suitable both for prototyping and for small production runs.
Il sistema è compatibile con batterie ricaricabili Li-ion formato 18650, facilmente reperibili e sostituibili quando necessario. La batteria non è inclusa.
Technical specifications:

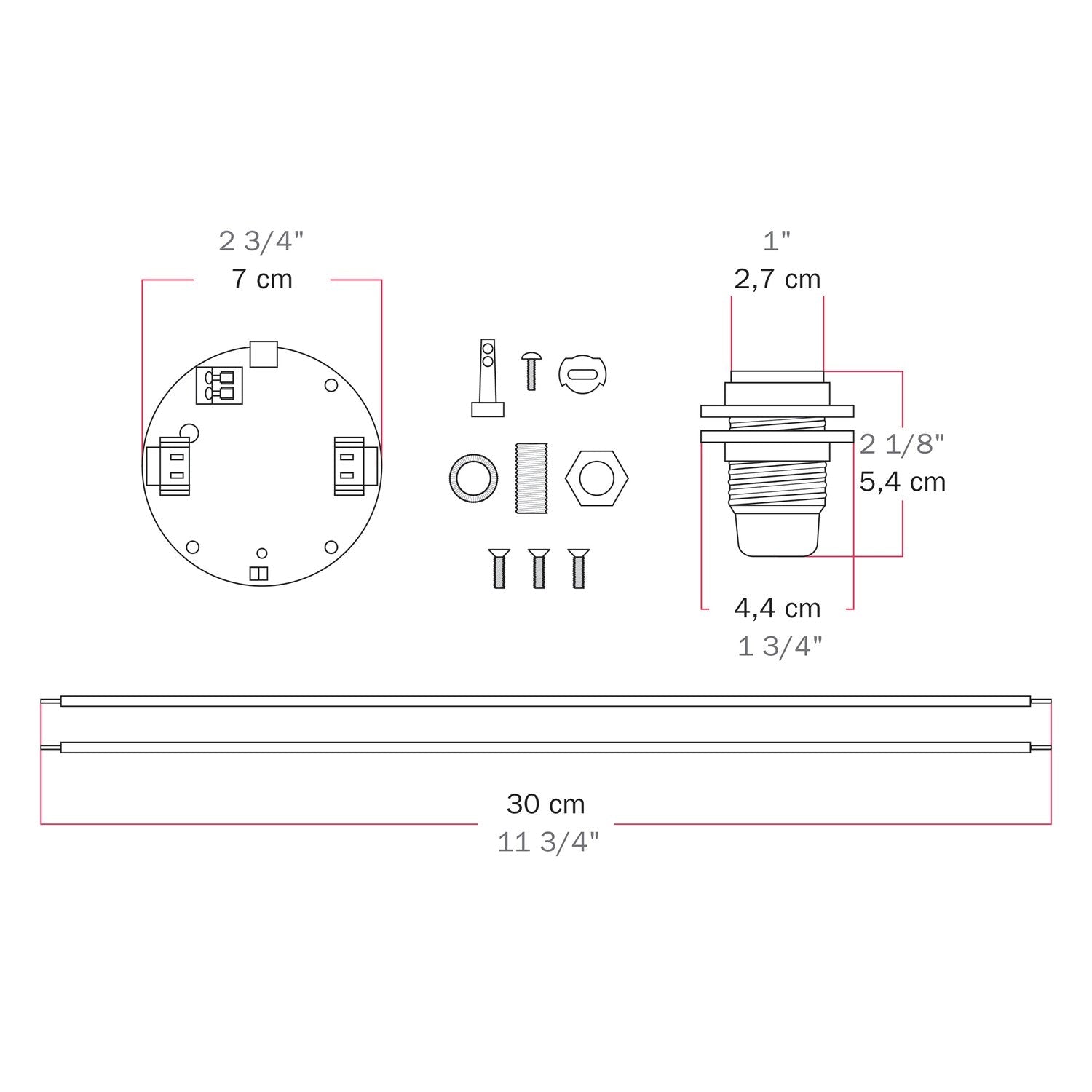

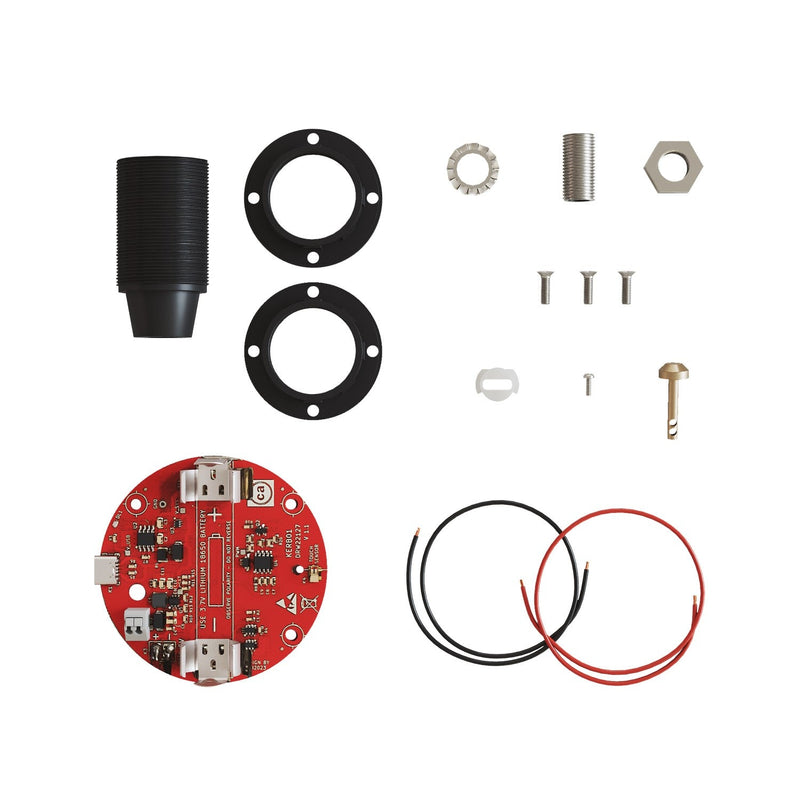

Kit composto da:
- Scheda elettronica rotonda Ø 70 mm con input 5V tramite USB C e output 5V per l’alimentazione della lampadina
- Tasto in ottone Ø 9,5 mm con vite di fissaggio e doppia posizione di montaggio per basi con diametro da 86 mm a 96 mm
- Adattatore in silicone trasparente Ø 12 mm
- Cavo unipolare a doppio isolamento rosso sezione 1x0,75 mm lunghezza 300 mm
- Cavo unipolare a doppio isolamento nero sezione 1x0,75 mm lunghezza 300 mm
- Viti di fissaggio M2.5x11 per il montaggio della scheda sulla base
- Tige di fissaggio in metallo M10x1 lunghezza 25 mm completa di dado e rondella
- Portalampada E14 filettato in termoplastica con doppia ghiera
Il sistema funziona esclusivamente con lampadine a 5 Volt.
Batteria Li-ion formato 18650, accessori di ricarica e lampadina non inclusi.
Technical details
Technical details
| Attacco | E14 |
|---|---|
| Materiale | Thermoplastic |
