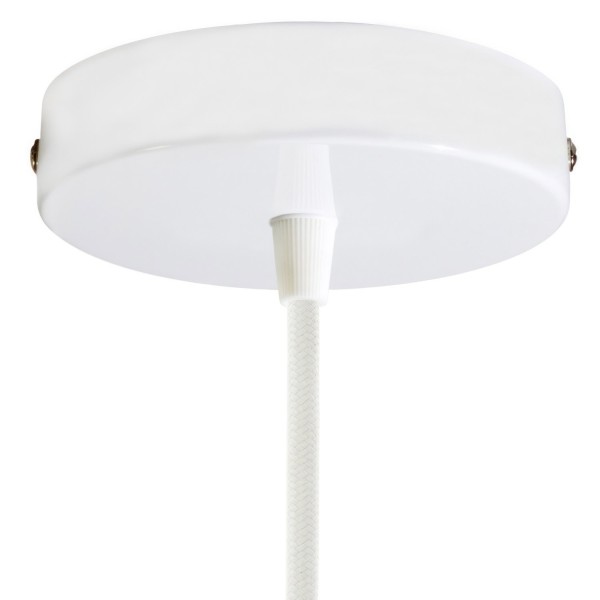

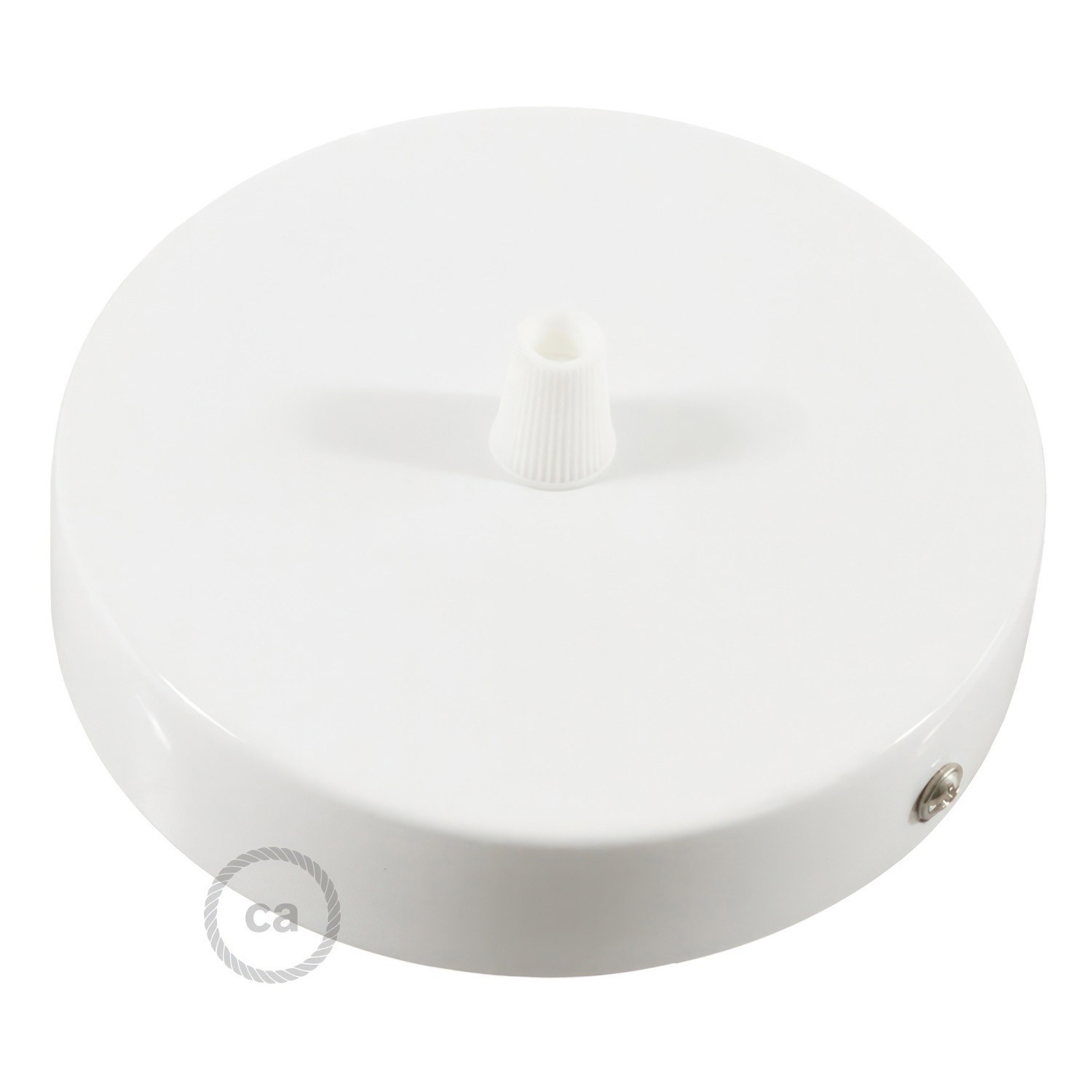

Classic 1-hole Round Metal Ceiling Canopy Kit

New product

1231 Items


- +

Our classic ceiling canopies. These canopies are beautiful and easy to use while providing a sleek and stylish look. They can be used to make your own pendant lights, wall sconces, or to replace most existing pendant light ceiling canopies.

Just choose the color and style of the single hole ceiling canopy that you want and then select the type of cable strain relief that you'd like to include with your canopy. The basic cable strain relief is a plastic Conical haped design. For a more refined look go with the Cylindrical cable strain relief option. All of the cylindrical cable strain reliefs are metal, except for the one that matches the gloss white canopy, which is plastic. (To better match the color of the gloss white.)

These single hole ceiling canopies are 4.7 inches in diameter. Large enough to cover a standard junction box. They have a height of 1 inch, which allows plenty of room for wiring if you choose to mount these to a wall or ceiling without using a j-box. The single center hole has a diameter of 3/8 inch.

All of our ceiling canopies are designed to work with our round and twisted pendant light cloth covered wire color cord. So mix and match your favorite color cable with the ceiling canopy of your choice. Or you can make your own wall sconce by matching a canopy with your choice of light bulb socket, extension tube, and/or elbow pipe! So pull out that inner lighting designer and get creative with our lamp parts.

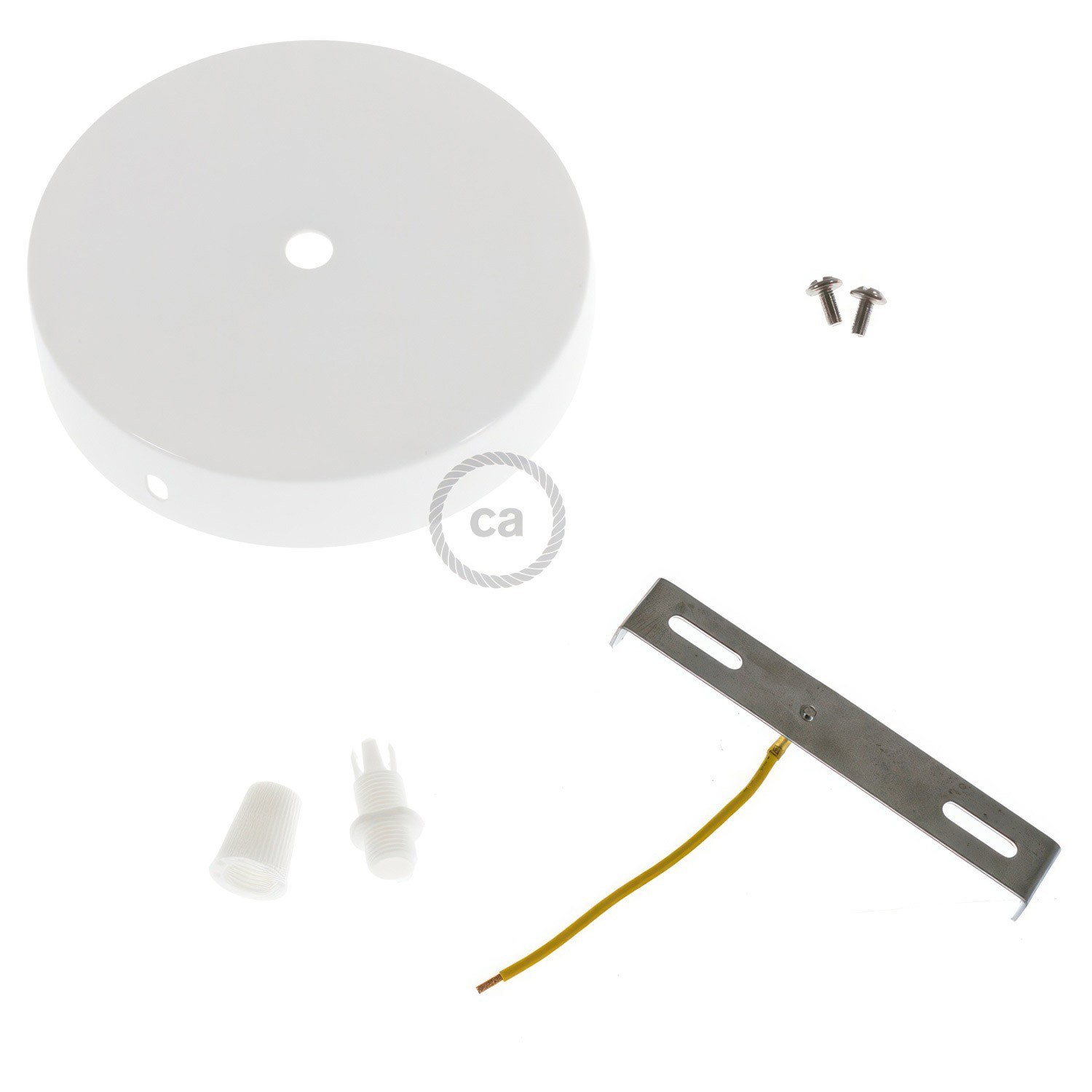

What's in the box? This single hole ceiling canopy comes with: the canopy; a crossbar for attaching the ceiling canopy to the junction box, wall or ceiling; two screws for attaching to a wall; two screws for attaching the mounting plate to the sides of the ceiling canopy; and your choice of style strain relief. (If you choose the cylindrical strain relief option it will include the cable strain relief, a metal tube for connecting to the strain relief, a lock washer and a nut.)

More details

More info

Technical specifications Single Hole Classic Round Metal Ceiling Canopy Kit:
Canopy diameter: 4.7 inches (120 mm)
Hole diameter: 3/8 of an inch (10 mm)
Material: metal

Technical specifications for the Cylindrical cable strain relief clamp:
Colored Cap size:
- diameter: 1/2 inch (13 mm)
- height: 2/3 inch (17 mm)
Cap Material:
- Gloss White Canopy uses a matching Plastic Cylindrical cable strain relief.
- All other ceiling canopy colors use a matching Metal Cylindrical cable strain relief.
The Cylindrical cable strain relief is attached to a threaded tube with the following specs:
- diameter: 3/8 inch (10mm)
- height: .59 inches (15 mm).
- material: metal

Technical specifications for the Plastic Conical cable strain relief clamp: - diameter: .58 inches (14.8 mm)
- height: 1.70 inches (43mm)
- material: thermoplastic.
