New product

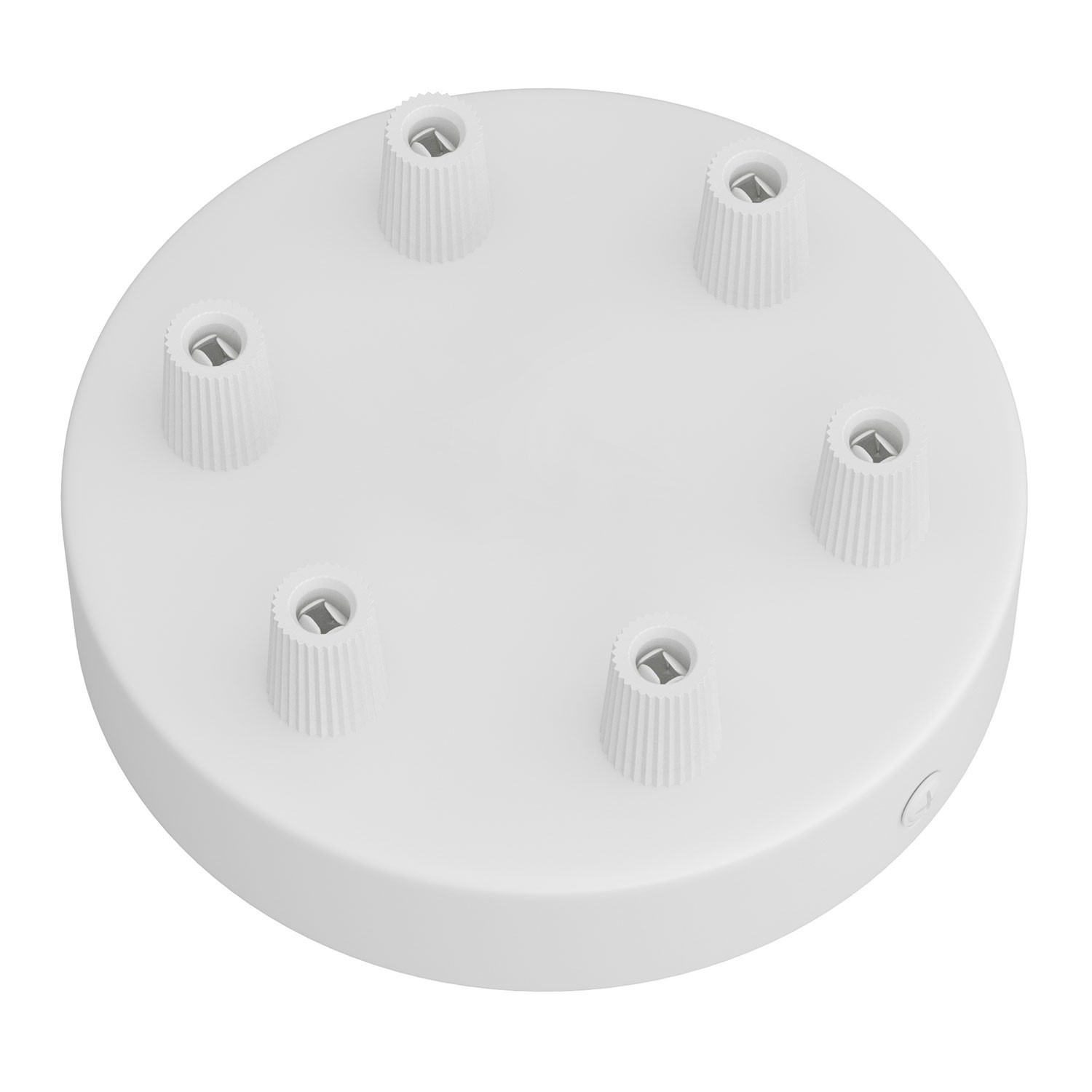

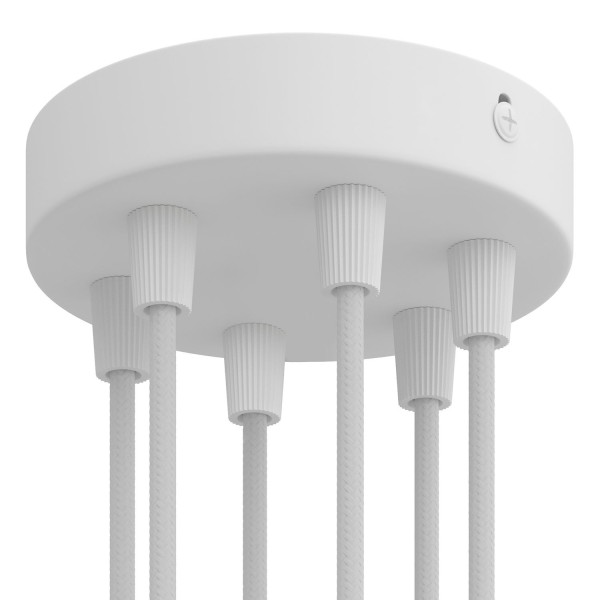

The 6-hole canopy metal kit can be used to assemble a ceiling or wall lamp that has 6 light sources.
The canopy is made out of metal and is available in 5 different colours, out of which three are satined
The 6-hole canopy metal kit is perfect for you if:
- you need a suspension lamp with 6 lightbulbs
- you love metallic finishes

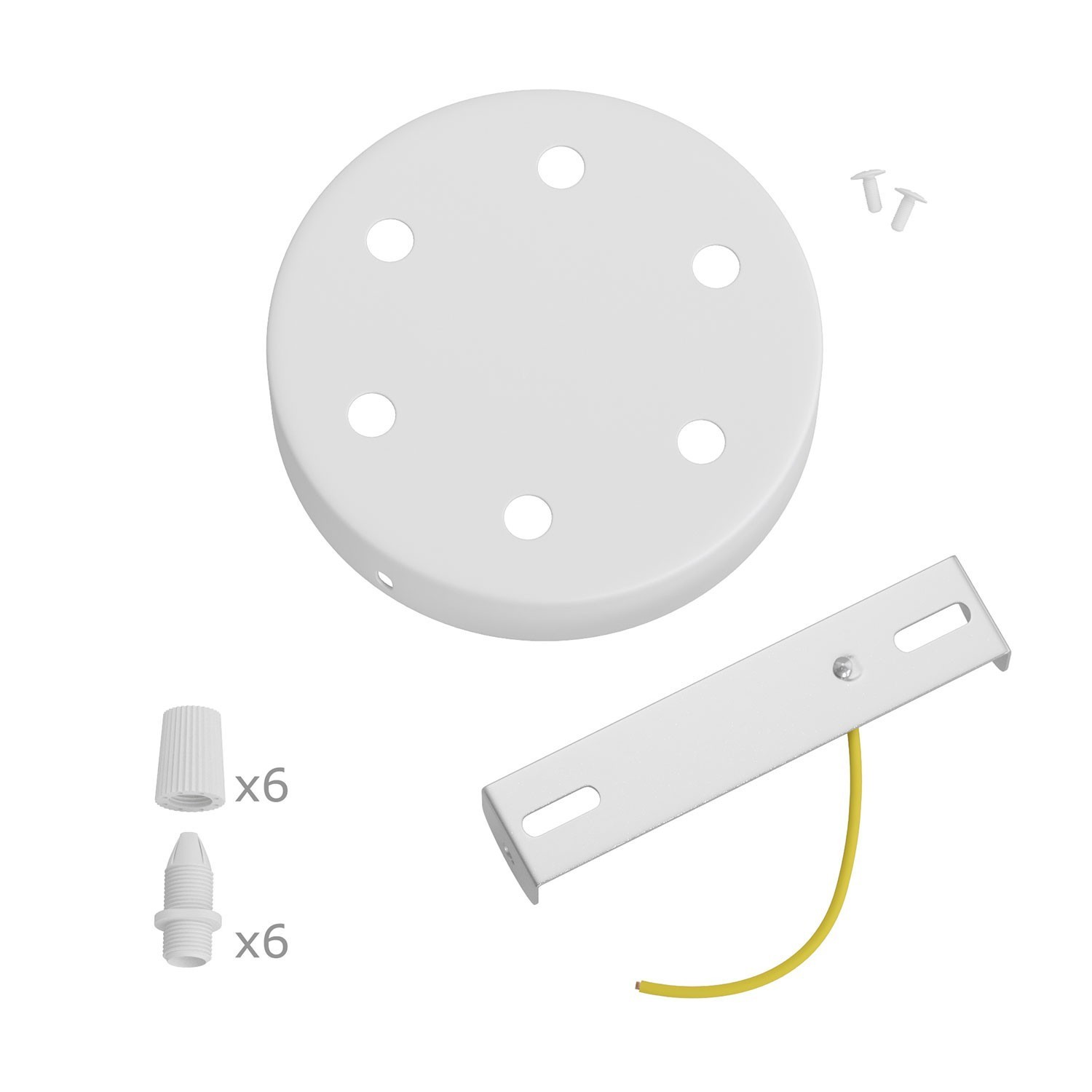

To set up and complete your 6-hole metal canopy kit:
- use the menus to define their characteristics
- find out how to fasten the canopy thanks to our tutorial
Additional pointer:
- match the 6-hole canopy with 6 cables in the same metallic finish and mount them with our decentralizers with V-shaped hook or lock
Technical specifications metal canopy kit

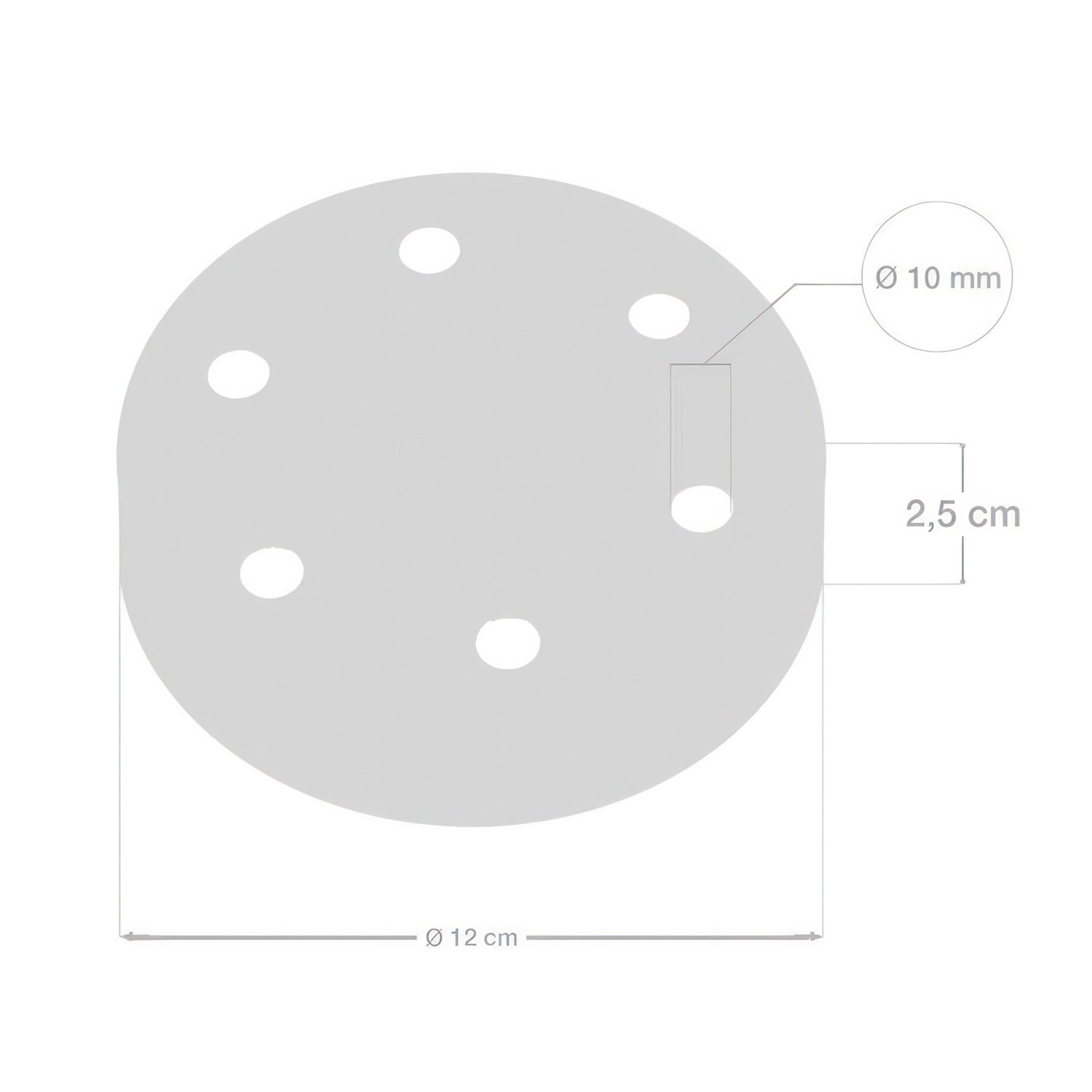

Diameter: 4.7in.
Hole diameter: 0.39in.
Material: metal.

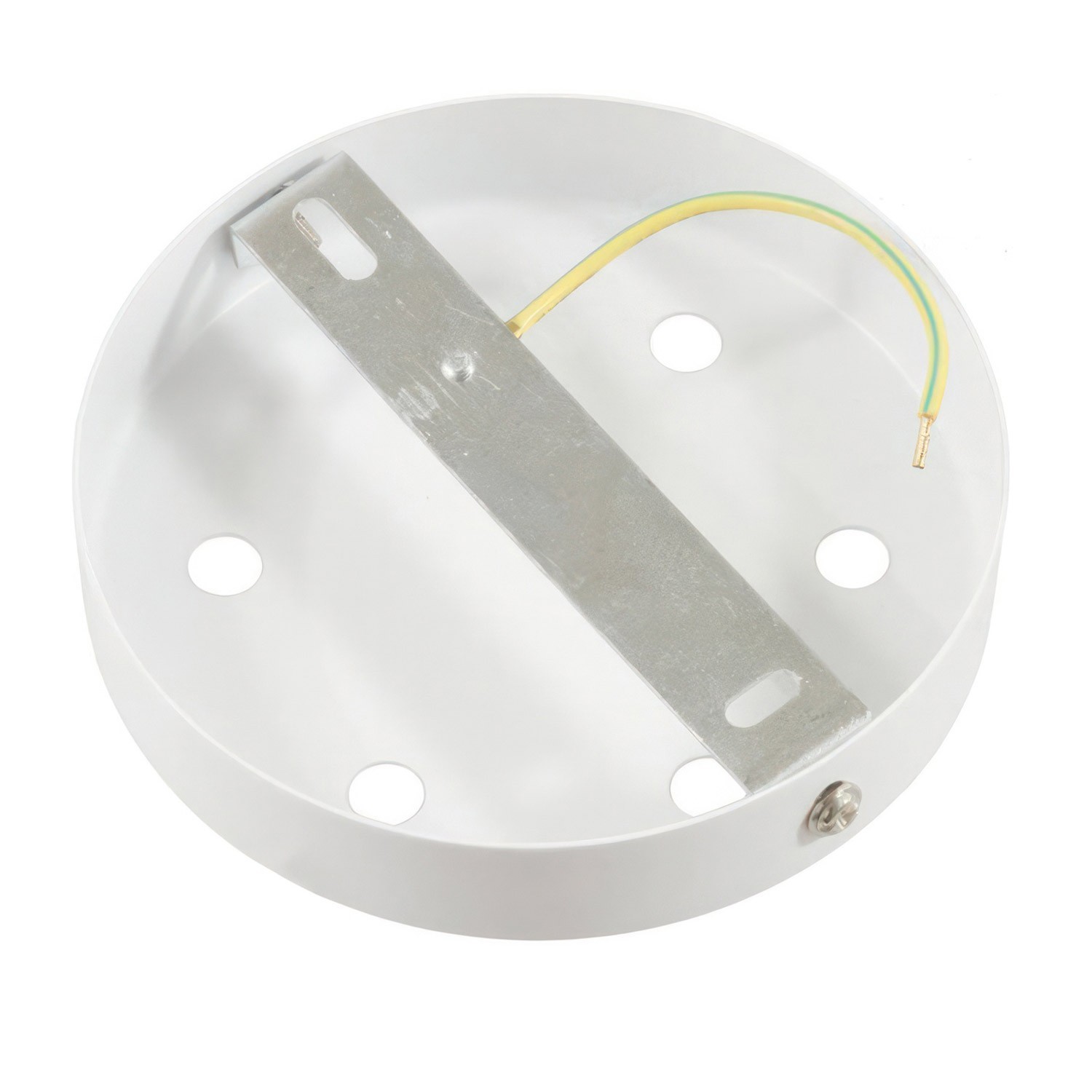

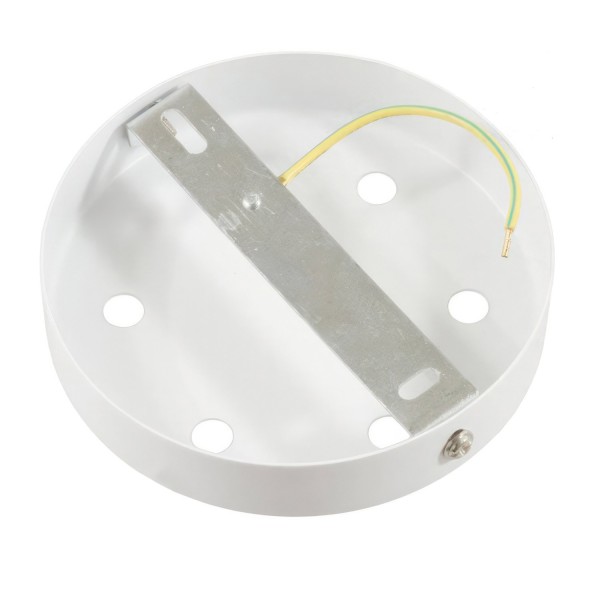

Bracket fasteners.
Technical specifications for round strain relief clamp
Cap size: diameter 0.51in - height 0.67in.
Cap material: plastic / metal.
Threaded tube size: diameter M10x1 - height 0.59in.
Threaded tube material: metal.
Technical specifications for conical cable clamp
Height: 1.7in.
Diameter: 0.58in.
Material: thermoplastic.
WARNING: the terminal blocks to connect the ceiling canopy to the mains power are NOT INCLUDED in the kit, but can be bought separately.
